8 channel differential amplifier for acquiring voltage, current and temperature

The imc CANSAS-C8 is a high-quality analog input module with 8 differential channels that are individually filtered, amplified, and digitized. This enables highly accurate temperature measurements with thermocouples and PT100, as well as voltage and current measurements with a maximum channel sampling rate of 100 Hz at a resolution of 16 bits. The exceptional channel design enables non-reactive measuring

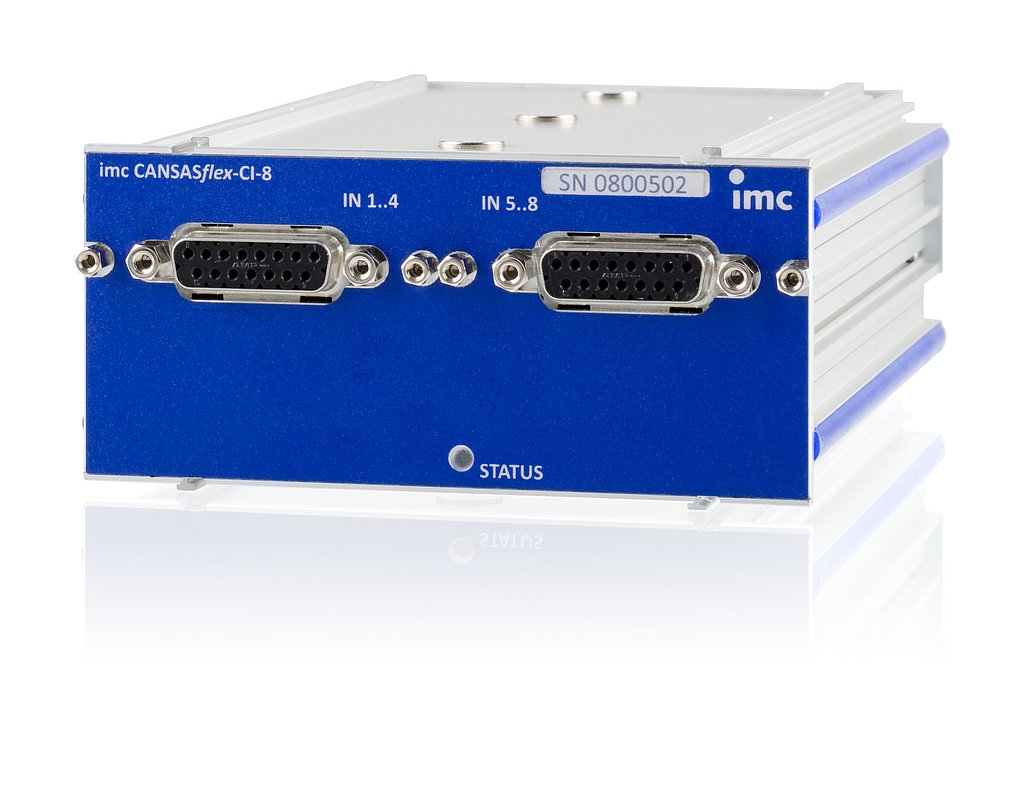

Isolated 8-channel differential amplifier for measuring current, voltage and temperature

The CAN-Bus Measurement Module imc CANSAS-CI8 is a isolated analog input module with 8 isolated channels ideal for the measurement of:

• Voltage
• Current (20 mA sensors)
• Thermocouples
• PT100 (optional PT1000) temperature sensors
• Resistance

For the supply of external sensors or for bridge measurement purposes, a sensor supply module with adjustable voltages is built into the system.

Highlights:

• isolated channels enable measurement:
  • in environments where the ground reference voltage conditions are not well defined
  • signals riding on a high common mode level
• 440 Hz bandwidth with max. 1 kSps/channel sampling rate
• Measurement ranges and sampling rates can be set per channel in steps of 1, 2, 5
• 16 bit resolution (with internal 24 bit processing)
• Supports imc Plug & Measure TEDS (Transducer Electronic Data Sheets, IEEE 1451.4) Support of TEDS for storing and exporting sensor information. Parameterization of a measurement channel at the click of a mouse.

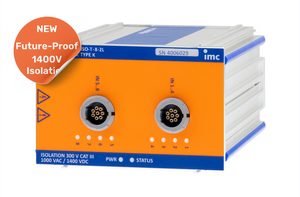

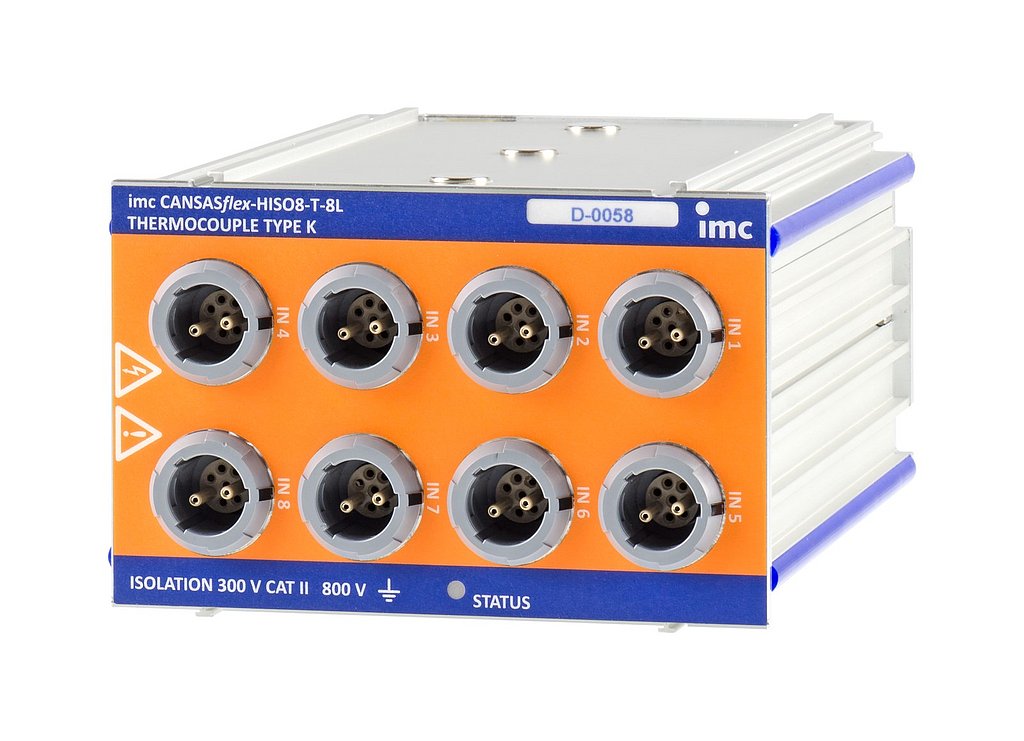

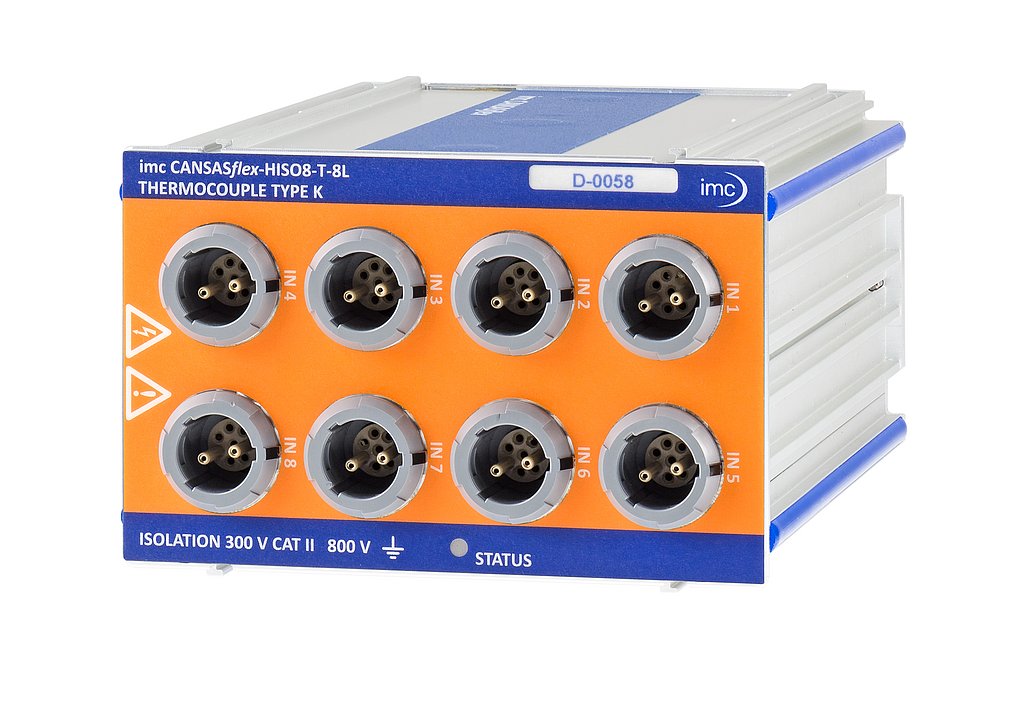

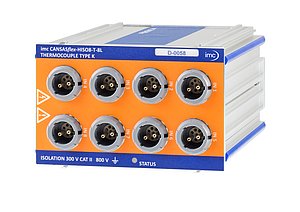

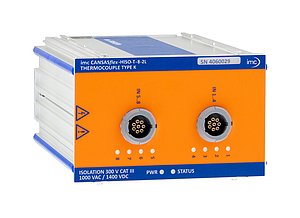

High voltage isolated CAN modules for the measurement of thermocouples

The measurement module imc CANSASflex-HISO8-T allows safe and precise measurement with 8 thermocouples (type K) which are mounted on high-voltage components with common mode voltage levels of up to 800 V. It is particularly suited for applications in the field of E-Mobility.

Highlights

• Individually isolated measurement of temperatures (type K thermocouples) at a high common mode voltage level
• Isolation: 800 V, 300 V CAT II (according to safety standard EN 61010)
• Connector types: High-voltage-proof special connectors (LEMO):
  • 2x TE common plug (LEMO.2P 8-pin) or
  • 8x TE single plug (LEMO.2P 2-pin)
• Channel individual internal cold junction compensation

Typical applications

• Temperature measurement on high-voltage components of hybrid and electric vehicles, such as batteries, fuel cells and supply systems.
• Environments where personnel safety has to be ensured

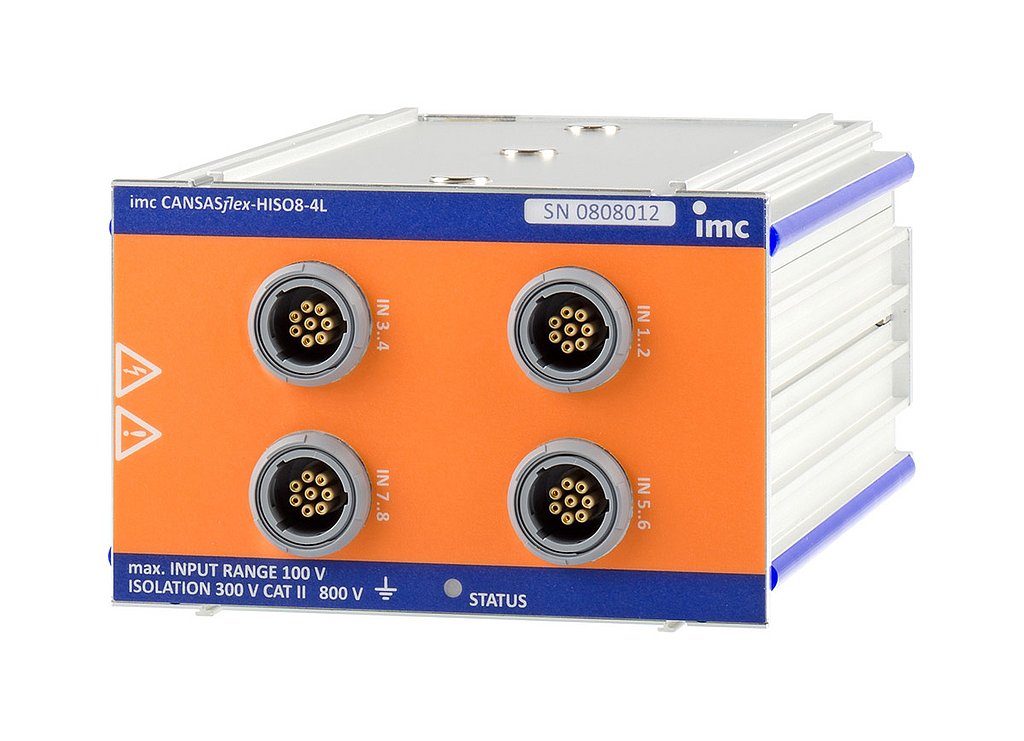

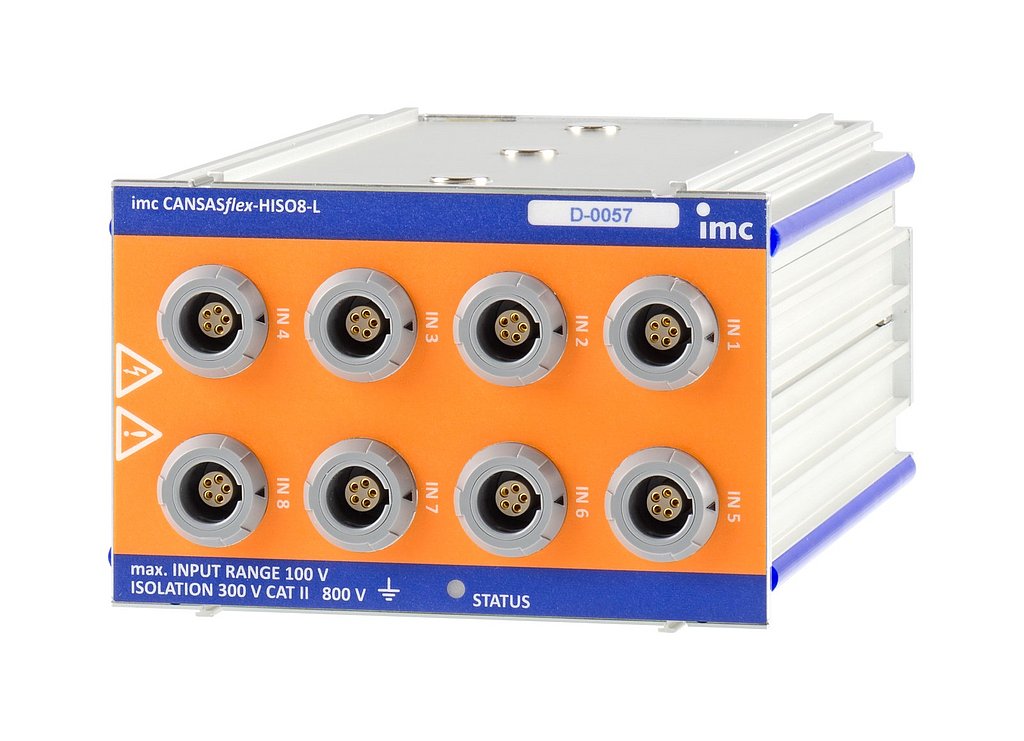

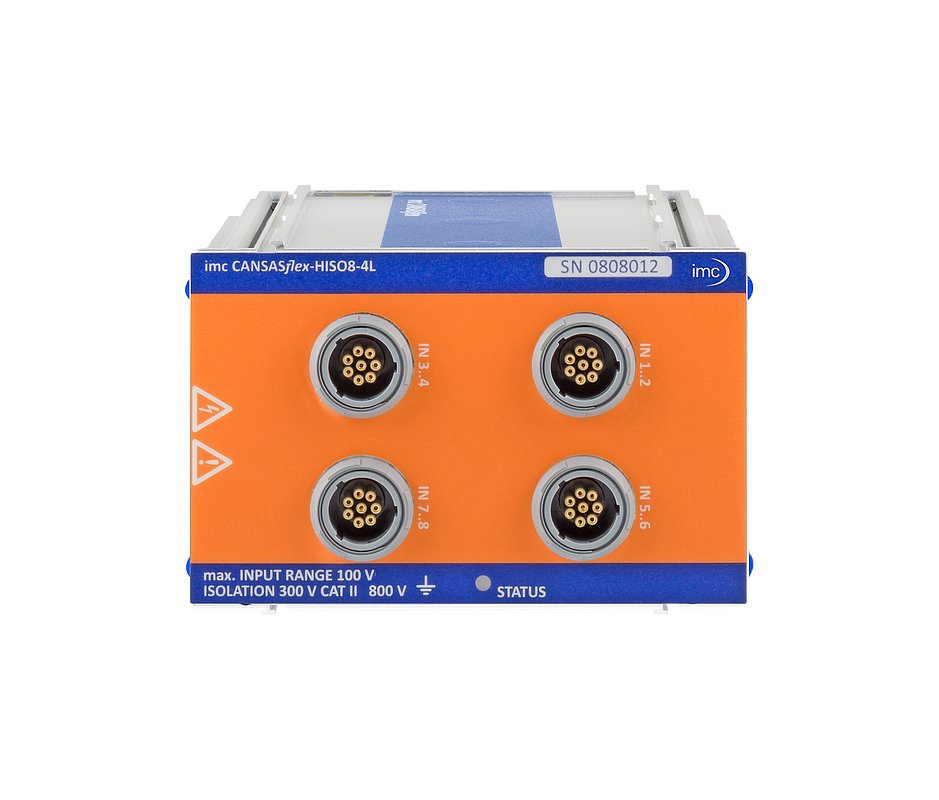

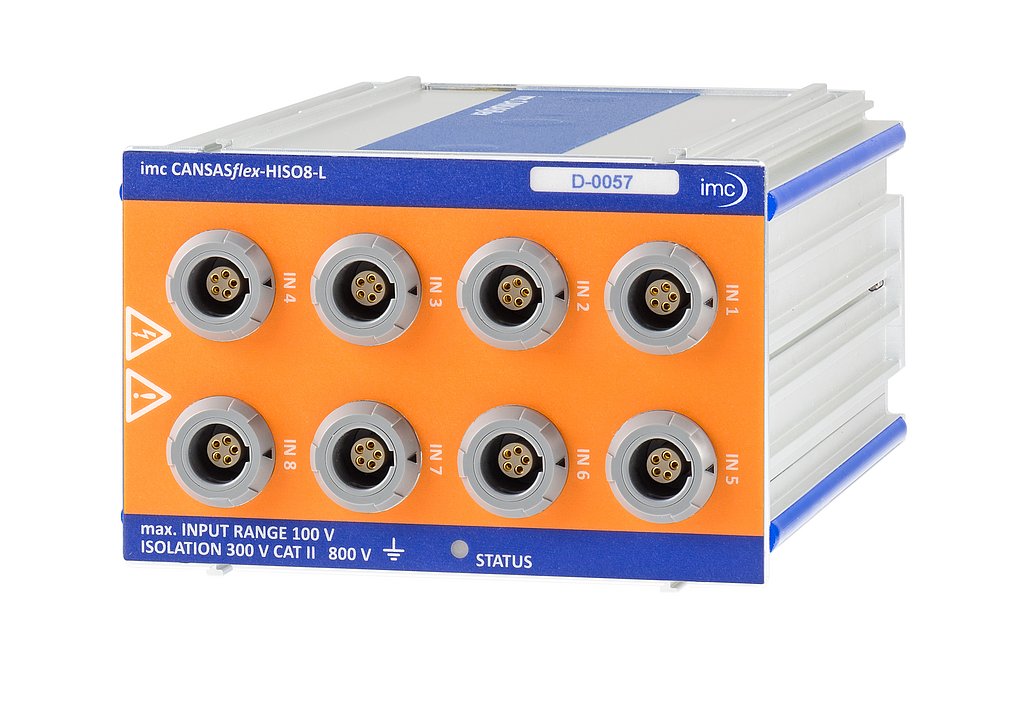

High voltage isolated CAN modules for the measurement of PT100/1000 and low voltages

The CAN-Bus measurement module imc CANSASflex-HISO8-L allows safe and precise measurement of PT100/1000, respectively low voltages, as well as differential voltages up to 100V on high-voltage components with common mode voltage levels of up to 800 V. It is particularly suited for applications in the field of E-Mobility.

Highlights

• 8 chanels for measuring PT100/1000 or low voltages up to 100V
• Isolation: 800 V, 300 V CAT II (according to safety standard EN 61010)
• Connector types: High-voltage-proof special connectors (LEMO):
  • 4x PTx/voltage common plug (LEMO.2P 8-pin)
  • 8x PTx/voltage single plug (LEMO.1P 5-pin)

Typical applications

• Temperature measurement on high-voltage components of hybrid and electric vehicles, such as batteries, fuel cells and supply systems.
• Environments where personnel safety has to be ensured

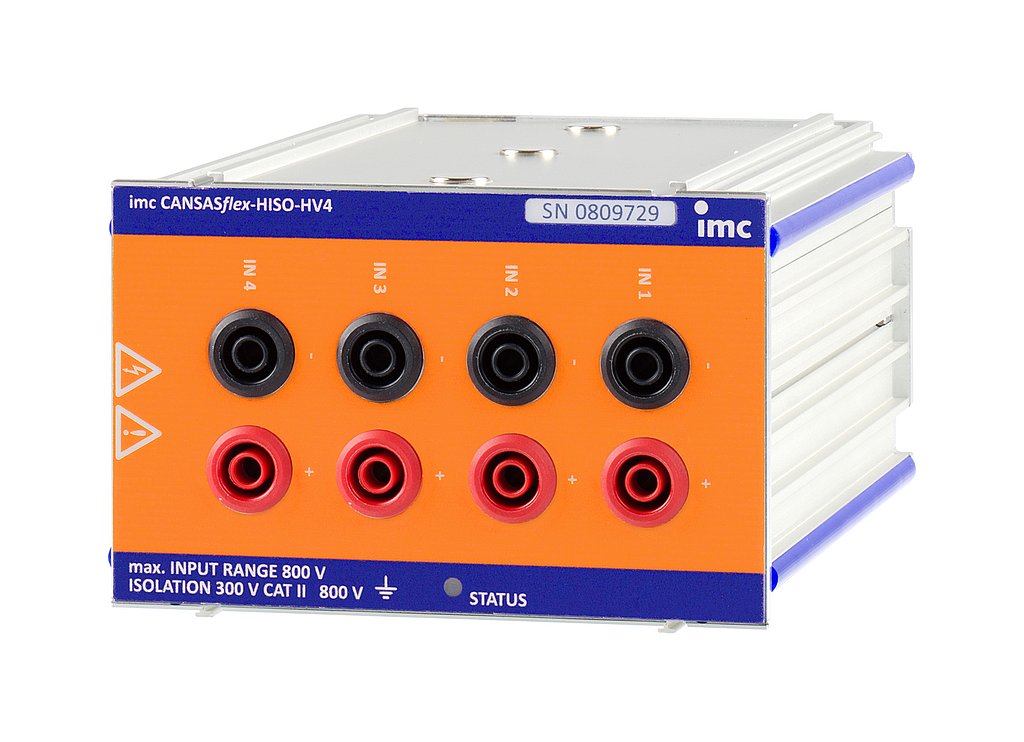

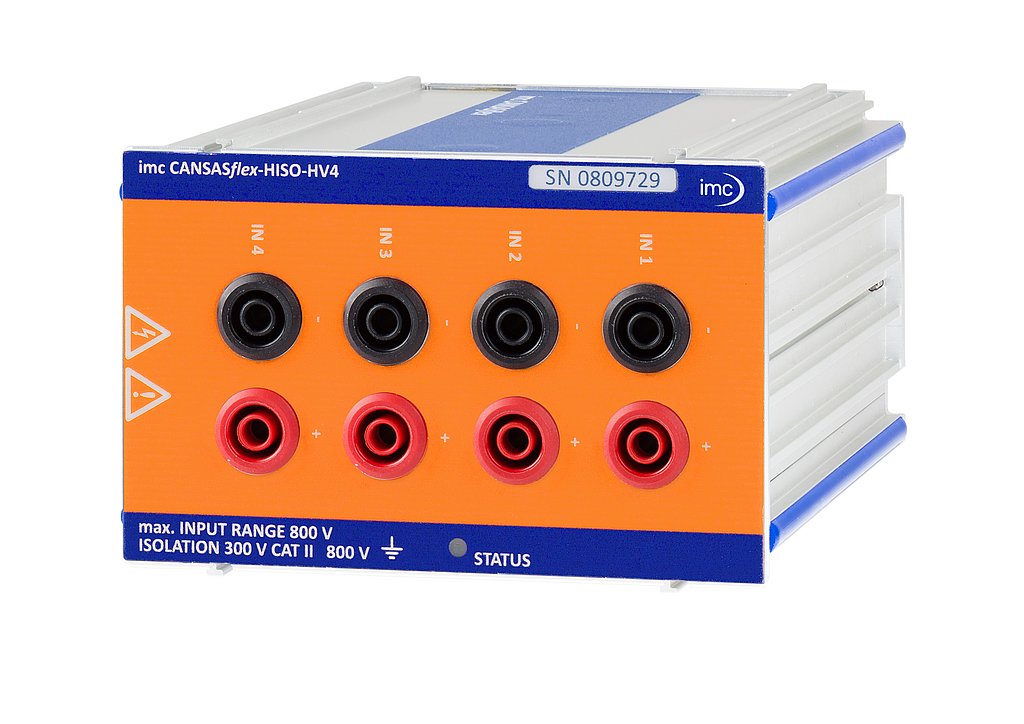

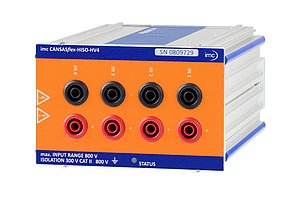

High voltage isolated CAN module for the measurement of differential voltages up to 800 V

The CAN-Bus measurement module imc CANSASflex-HISO-HV4 allows a differential voltage measurement up to 800 V on four channels.

Highlights:

• Channel-wise isolated, galvanically-separated inputs
• High-voltage isolation: channel/channel, channel/housing, channel/CAN and power supply
• Isolation: 800 V, 300 V CAT II (according to safety standard IEC 61010)

Typical Applications:

• Voltage measurement and tests on high-voltage components of hybrid and electric vehicles.
• HV-batteries, on-board high-voltage electrical systems, DC bus, charging converters, accessory subsystems
• Evaluation of charge flows, energy balances and efficiencies
• Environments where personnel safety has to be ensured
• For supplementary current measurement the modules of the HISO8-L/-4L series can be used (with
  measurement shunt at HV level) or precision current transformers in conjunction with non-isolated
  standard voltage modules

16 channel CAN measurement module for voltage, current (20 mA) and temperature

The imc CANSASflex-SC16 measurement module is a 16 channel CAN bus measurement amplifier that
comprises analog conditioning of physical sensor signals, digitization and output via CAN bus. The multiplexed differential inputs allow (depending on the variant) acquisition of:

• Voltage (100 mV to 10 V)
• Current (20 mA sensors)
• Temperature (thermocouple, RTD/PT100)

Module versions with DSUB-15 connectors support all measurement modes. Versions with alternative
connectors, such as thermocouple inputs, support only these selected modes. The module is available in both short and long housing.

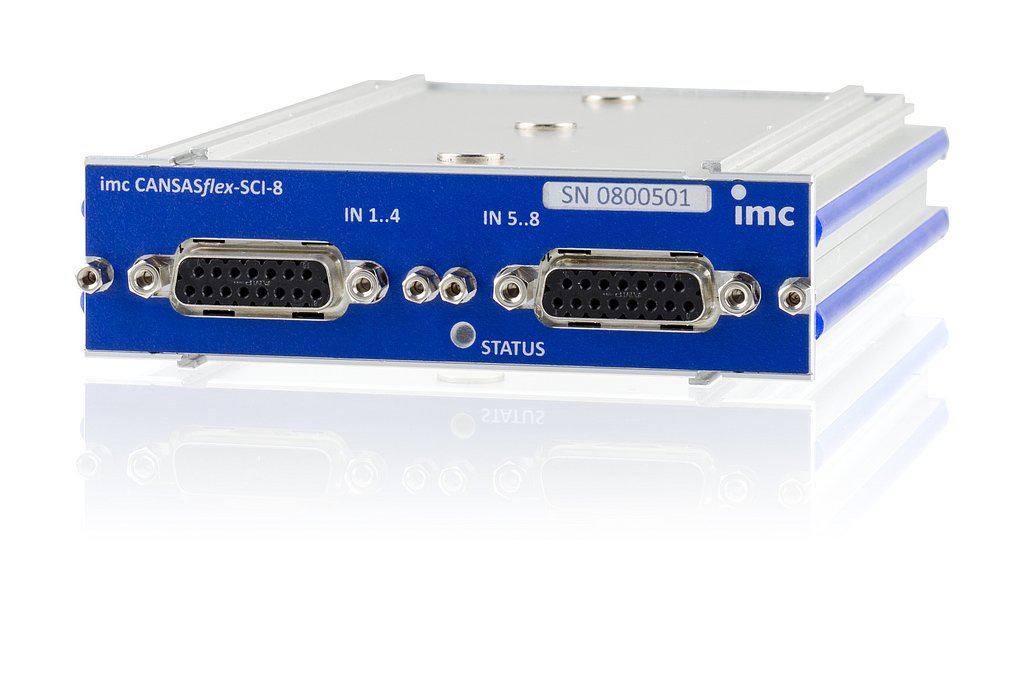

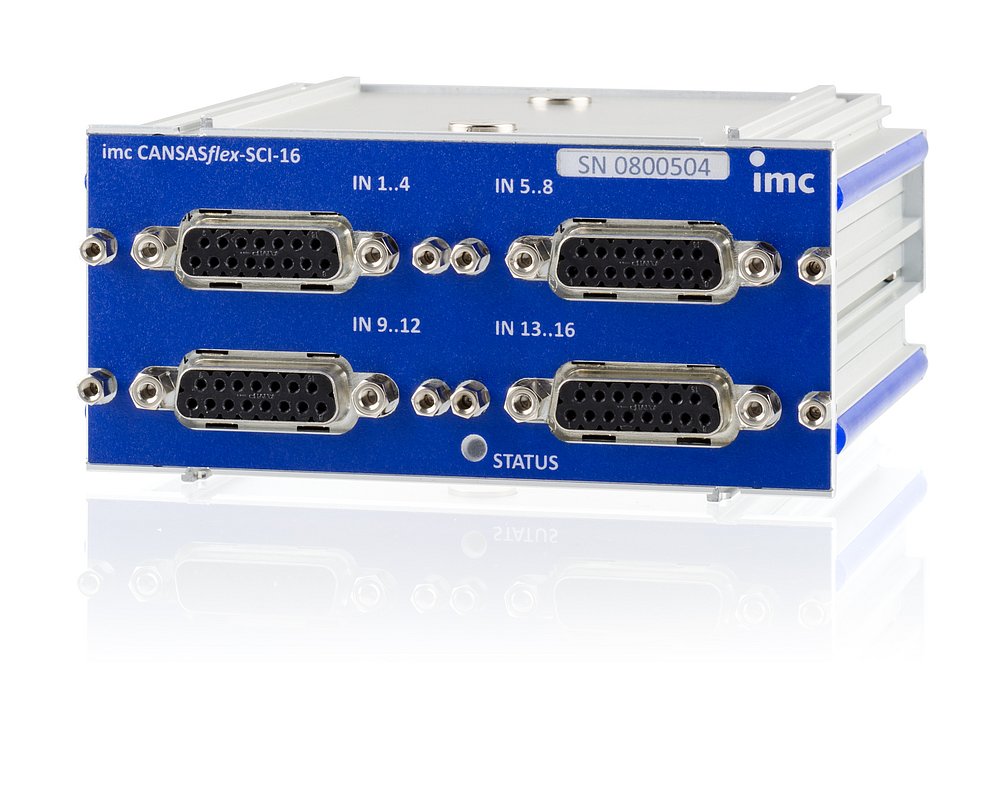

8- or 16-channel module for isolated measurement of voltage, current and temperature

The SCI16 and SCI8 measurement modules are analog input modules with 8 and 16 multiplexed isolated inputs, respectively. Voltage signals of up to 60 V, current signals of up to 20 mA, Pt100 sensors and any commercially available thermocouples can be connected directly. Advanced signal processing techniques provide fully simultaneous sampling without any channel dependent time delays, despite it's multiplexed architecture. Refined filtering and noise suppression methods allow highly sensitive voltage and thermocouple measurements, even in demanding environments. The noise suppression provided is most effective at low sampling rates and decreases as the sampling rate is raised.

Highlights:

• Measurement ranges and sampling rates can be set per channel in steps of 1, 2, 5
• 16 bit resolution (with internal 24 bit processing)
• Supports imc Plug & Measure TEDS (Transducer Electronic Data Sheets, IEEE 1451.4) Support of TEDS for storing and exporting sensor information. Parameterization of a measurement channel at the click of a mouse.

Bridge amplifier module with 8 channels for voltage, measurement bridges and strain gauge

This imc CANSAS-DCB8 module provides 8 dynamic bridge channels which can each be filtered, amplified and digitized separately. For the supply of external sensors or for bridge measurement purposes, a sensor supply module with adjustable voltages is built into the system.

Highlights:

• Measurement ranges and sampling rates can be set per channel in steps of 1, 2, 5
• 16 bit resolution (with internal 24 bit processing)
• Built-in sensor supply
• Supports imc Plug & Measure TEDS (Transducer Electronic Data Sheets, IEEE 1451.4) Support of TEDS for storing and exporting sensor information. Parameterization of a measurement channel at the click of a mouse.

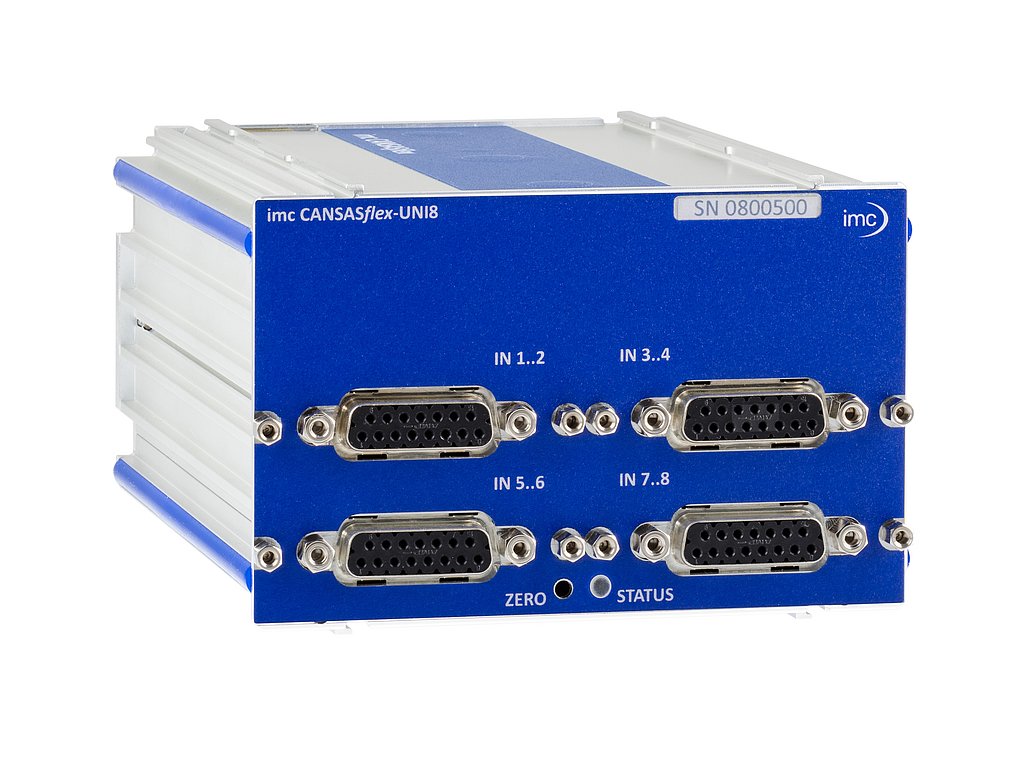

Universal module with 8 channels for voltage, current, thermocouples, PT100, measurement bridges, strain gauge and resistance measurement

The  imc  CANSAS-UNI8 module  provides  8  versatile all-purpose channels which are individually filtered, amplified and digitized. In this way, imc CANSAS-UNI8 covers a wide range of physical measurement applications, from temperatures to current and voltage, all the way to acquisition of measurement bridge and strain gauge signals.

Highlights:

• Measurement ranges and sampling rates can be set per channel in steps of 1, 2, 5
• 16 bit resolution (with internal 24 bit processing)
• Built-in sensor supply
• Supports imc Plug & Measure TEDS (Transducer Electronic Data Sheets, IEEE 1451.4) Support of TEDS for storing and exporting sensor information. Parameterization of a measurement channel at the click of a mouse.

Module for acquisition of frequency, rotation, position and angle counter signals

The CANSAS-INC4 offers 4 differential channels which can each be used for event counting, time measurement or a combination of event counting and time measurement. These operating modes enable capture of incremental counter sensors such as those used for measuring frequencies, RPM-values and velocities. The switching threshold and hysteresis are software configurable for the purpose of detecting events or impulses for incremental measurements.

16 channel digital input module

The imc CANSAS-DI16 provides the possibility to capture up to 16 digital inputs at a maximum sampling rate of 10 kHz. The data capture can take the form of either single-bit or as a binary word over all the inputs; the module’s input voltage can be set by software to either 5 V or 24 V.

Module with 16 digital outputs

The imc CANSAS-DO16 family of modules provides 16 digital outputs. The outputs are configurable in two 8-bit groups, either as Open-Drain or Totem-Pole.

8 or 16-channel module, respectively, with digital outputs as relays

The imc CANSAS-DO8R or CANSAS-DO16R module provides 8 or 16 relays, respectively, each with an opener and a closer contact. The switching state after starting is defined permanently (“ON“).

Module for outputting Pulse-Width-Modulated signals

The  output  module CANSAS-PWM8 generates pulse-width-modulated signals, either from values sent by the CAN-Bus, or from internally computed values.

8-channel analog output module for voltage and current signals

This imc CANSAS-DAC8 module outputs the user's choice of current or voltage signals on 8 analog outputs. The desired output signals can either be extracted directly from a CAN message or derived from received CAN-messages or specified functions (e.g. squarewave, sawtooth, etc.) by means of the module's computational capacities.
