The alternative to the oscilloscope. The integrated high-speed measurement device for the MHz range – Ideal for blasting tests, turbine and rocket tests, through to e-mobility analyses.
Get price details
Nopea tiedonkeruulaite ja transienttitallennin
Uusi imc EOS avaa uusia ulottuvuuksia. Näytteenotolla 4 MHz asti, imc EOS sallii hyvin nopeiden dynaamisten prosessien tutkimisen. Neljä isoloitua analogista tuloa toimivat jännite- ja virtasignaalien kanssa ja tukevat myös IEPE-antureita kiihtyvyyden ja äänipaineen mittaukseen. Sovellukset ovat monenlaiset: nopeasta räjähdyskokeiden tallentaminen, rakennemelun ja värähtelyn mittaaminen, ohjainyksiköiden tilanvaihdosten tutkiminen, törmäystyynyjen toiminta ja törmäyskokeet.imc EOS voidaan synkronoida muiden imc mittauslaitteiden kanssa ja sitä käytetään myös imc STUDIO ohjelmiston kautta.
Get price details
Important Features
4 MHz
Sampling rate per channel and instrument
± 100 V
Precision inputs with wide measurement ranges
Mobile
Robust and stand-alone, can also be used without PC
1.8 MHz
Analog signal bandwidth
1 Terabyte
Integrated flash memory
Universal
Integrated and synchronized with all imc measurement systems
24 bits
High-resolution, precise A/D converter
Battery
Optional battery pack allows stand-alone operation
Simple
Uniform software for all imc systems
Fast and flexible measurement amplifier
imc EOS offers high-end measurement technology in a compact device. Four galvanically isolated precision amplifiers ensure perfect signal quality even in demanding electromagnetic environments. Each signal input is via either a BNC or LEMO connection that can be chosen according to sensor technology. Voltage signals up to ±100 V, IEPE/ICP sensors such as accelerometers, microphones or piezoelectric force sensors can be measured. Precision current transducers are also supported. The acquired signals are digitized with 24 bits at up to 4 MHz per channel – the analog bandwidth extends to 1.8 MHz. An optional individually configurable sensor supply of 2 Watts per channel for feeding active sensors leaves nothing to be desired.
Safe Storage
imc EOS can be equipped with an integrated flash memory of up to 1 Terabyte. This makes imc EOS a stand-alone high-speed recorder suitable for use entirely without a PC. Onboard industrial-grade solid state storage ensures the safe internal storage of measurement data independently of a fast network connection. Furthermore, a flexible trigger machine allows the data to be accurately reduced to relevant events. Additionally, data can be streamed via the Gigabit Ethernet interface to a PC for visualization and permanent archiving.
Integrated Comprehensive Solution

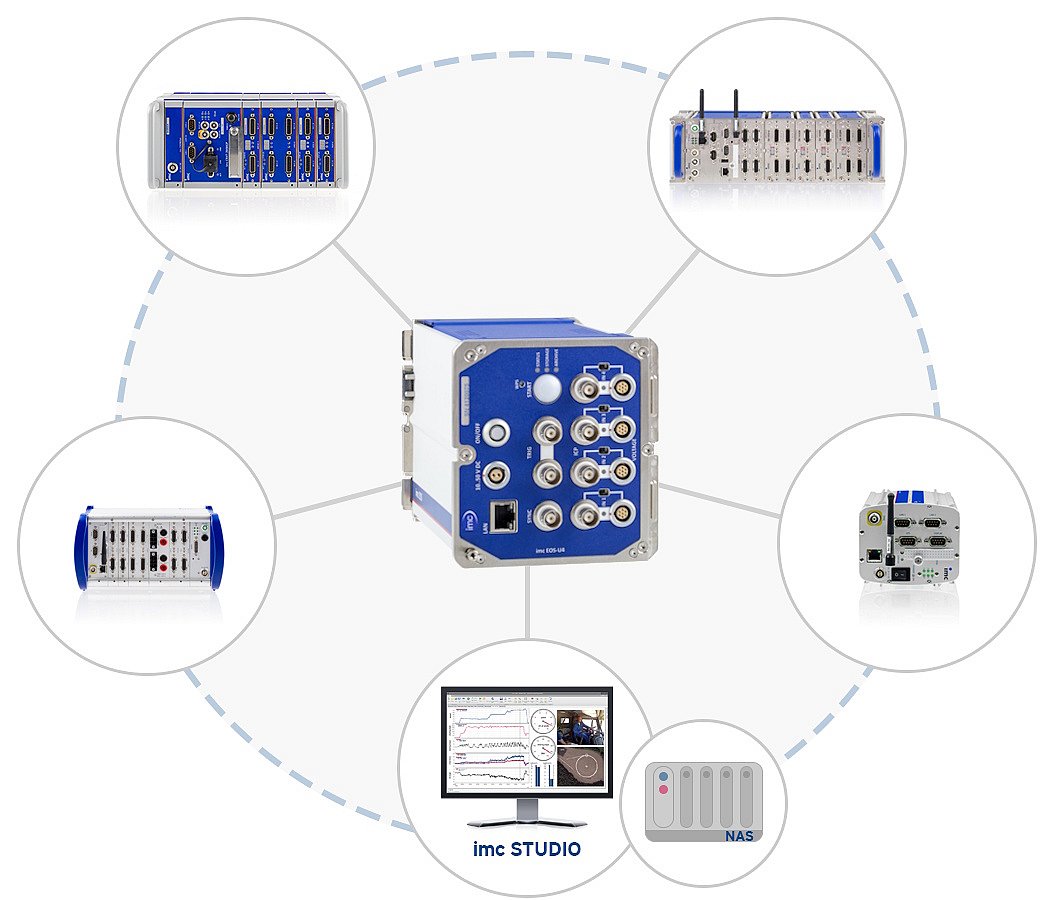

The demands placed on modern test environments are constantly increasing. In addition to the acquisition of classic mechanical and physical quantities such as strain, pressure, temperature and voltage, along with the variables of process control, field buses and others, there is also an increasing need for acquiring very fast signals in high resolution. Examples of this include ECU control signals, high dynamic range sensors and actuators or electromagnetic subsystems. Oscilloscopes, the classic solution frequently used in the past, usually fail to meet these high demands. The demand is for very precise, high resolution digitization far in excess of 12 bits, integrated sensor conditioning and seamless integration into one comprehensive system capable of acquiring, displaying, correlating and analysing all relevant quantities together. This calls for new approaches to measurement that synchronously bring together “slow” and “fast” data acquisition. With imc EOS this is child’s play, because it works together synchronously with all imc measurement data acquisition systems.
Furthermore, it is completely compatible mechanically with the imc CRONOSflex product family. imc CRONOSflex base units, as well as measurement modules and accessories, can be clicked together directly. This creates a comprehensive, integrated complete system for demanding test tasks that need only one power source. All connected devices are automatically supplied via an integrated backbone.
Wide range of accessories
The versatile range of accessories in the imc CRONOSflex series, such as power supply modules or handles, battery-buffered UPS solutions (“power handle”) or sensor supply modules for high-performance current transducers and current clamps, are compatible with imc EOS measurement devices.
Furthermore, with imc NET-SWITCH – also with a click connection – a 5 port GBit network switch is available to the user, enabling the synchronous networking of systems. An especially comfortable feature: complete systems clicked together only need to be powered
Typical applications
Automotive
- Motor or transmission vibration
- Turbocharger measurement
- Injection system analysis
- Airbag triggering tests
- Crash tests
e-mobility
- Measuring electric motors for 48V systems
- e-mobility systems such as mild hybrid vehicles, e-bikes, e-scooters
- Power tool tests
- Inverter and switch measurement
Aviation, aerospace & defence
- Turbine testing (jets, power generation)
- Rocket propulsion tests
- Combustion instability monitoring
- Blasting and explosion processes
- Ballistics, shot and drop tests
Comfortable measurement technology software
As with all imc measurement systems, imc EOS operates with the uniform measurement software imc STUDIO. This software offers full control over the complete measurement process: from channel configuration through to the report. imc STUDIO brings together data acquisition, visualization, analysis and test automation. Regardless of whether you configure your imc EOS for fast mobile measurement in “black box” testing or for comprehensive testing with several imc systems and hundreds of channels, including synchronous video capture – with imc STUDIO you have full control over your complete measurement process.
Technical Data
| imc EOS U-4 | |
|---|---|
| General | |
| System data rate | 4 MS/s |
| Analog Inputs | |
| Analog inputs (BNC / LEMO) | 4 |
| Sampling rate per channel | 1 kS/s to 4 MS/s |
| Analog bandwidth | 1.8 MHz |
| Operation modes | Voltage mode, AC and DC coupling, IEPE sensors (AC with current feed) |
| Measurement ranges | ±100 mV ... ±60 V (max. 100 V) |
| Isolation | channel-wise galvanically isolated |
| Selectable digital filters | 200 Hz ... 500 kHz as well as automatic, Anti-Aliasing-Filter (digital AAF): max. 800 kHz @ 2 MSps/s |
| Resolution | 24 Bit ADC |
| Sensor supply (optional) | |
| Output voltage | ±15 V ... ±2.5 V |
| Selectable | channel-wise configurable |
| Isolation | channel-wise galvanically isolated |
| Output power | 1.5 W/channel, max 300 mA, overload and short circuit proof |
| Connectivity | |
| Ethernet | 1 x GBit-LAN (RJ45) |
| Synchronization | 1 x BNC (IRIG-B) |
| External Trigger | 2 x BNC (IN/OUT) |
| Action-Button (manual start, trigger, etc.) | ⬤ |
| Data storage | |
| Onboard Flash memory | 480 or 960 GByte |
| Storage to PC (network streaming) | ⬤ |
| Arbitrary memory depth with pre- and post trigger | ⬤ |
| Autonomous operation | |
| Stand-alone operation (without PC) with auto-start | ⬤ |
| Auto data saving upon power failure | ⬤ |
| Trigger function (PC independant) | ⬤ |
| Synchronization & clock | |
| Master-Slave between imc systems | ⬤ |
| Network based synchronization (NTP) | ⬤ |
| via external IRIG-B signal | ⬤ |
| Power supply | |
| DC supply 10 to 50 V (isolated) | ⬤ |
| AC/DC adapter (110 to 230 VAC) | ⬤ |
| Data integrity (saving) upon power fail | ⬤ |
| longterm UPS (li-Ion battery) as optional clickable module | ⬤ |
| Operating conditions | |
| Operating temperature range (standard), non-condensating | -10°C to +55°C |
| Legend: | Standard: ⬤ | not supported: |
